Ex rotary encoders (ATEX / IECEx)

•
  Ex rotary encoders

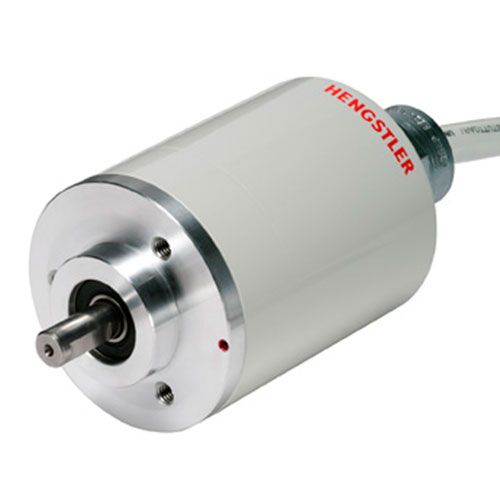

  ICURO RX70

  +

Ex rotary encoders (ATEX / IECEx) ICURO RX70

Product Overview

• Explosion protection for Zones 1 and 21
• Highest available dependability
• Up to 10,000 lines
• Available as stainless steel version RX71 (RX 70TI)
• Typical applications: paintshops, Surface machining plant, Bagging installations, Mixing plant, Silo installations




Technical Data
Product Family	RX70
Ordering Information	RotaryEncoderRX70
Fuction / Application	Incremental
Technology	Optical
Approval	CE ATEX IECEx



Send Enquiry
•
  Ex rotary encoders

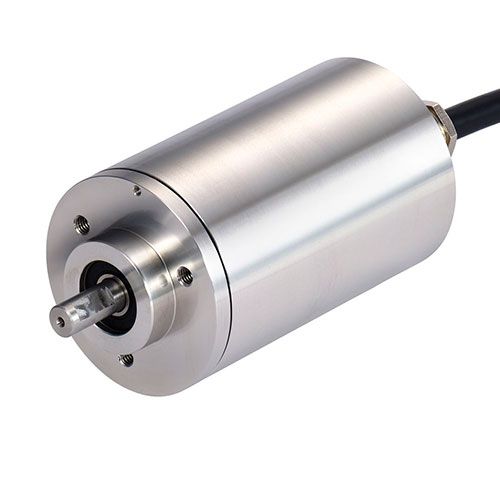

  ICURO RX71

  +

Ex rotary encoders (ATEX / IECEx) ICURO RX71

Product Overview

• Explosion protection for Zones 1 and 21
• Highest available dependability
• Up to 10,000 lines
• Available as stainless steel version RX71 (RX 70TI)
• Typical applications: paintshops, Surface machining plant, Bagging installations, Mixing plant, Silo installation




Technical Data
Product Family	RX71
Ordering Information	RotaryEncoderRX71
Fuction / Application	Incremental
Technology	Optical
Approval	CE ATEX IECEx



Send Enquiry
•
  Ex rotary encoders

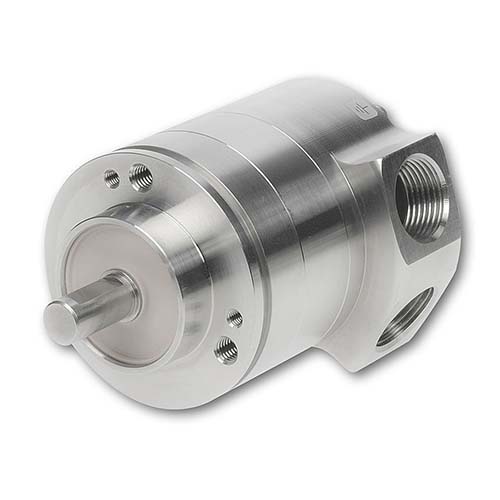

  ACURO AX65

  +

Ex rotary encoders (ATEX / IECEx) ACURO AX65

Product Overview

• ATEX and IECEx certification for Gas, Dust and Mining
• Most compact design of its class: 59 mm housing diameter / 70 mm mounting depth
• Extreme robust design
• 300 N axial and radial load
• 200 g shock resistance / 30 g vibrations resistance
• Protection class up to IP66 / IP67
• Easy field installation
• Terminal box with cage clamp technology
• Interfaces: SSI and CANopen




Technical Data
Product Family	AX65
Ordering Information	RotaryEncoderAX65
Fuction / Application	Absolute
Technology	Magnetic
Approval	CE ATEX IECEx



Send Enquiry
•
  Ex rotary encoders

  ACURO AX70

  +

Ex rotary encoders (ATEX / IECEx) ACURO AX70

Product Overview

• ATEX certificate for gasn and dust explosion-proof use
• Ingress protection up to IP67
• Diameter only 70 mm
• High degre of robustness
• Also available with rust-resistant stainless steel housing
• Resolution up to 29 bits (17 bits ST, 12 bits MT)
• Applications: Paint shops, Petrochemicals, Bagging systems, Mixing installations, Silo installations, Mills




Technical Data
Product Family	AX70
Ordering Information	RotaryEncoderAX70
Fuction / Application	Absolute
Technology	Optical
Approval	CE ATEX IECEx



Send Enquiry
•
  Ex rotary encoders

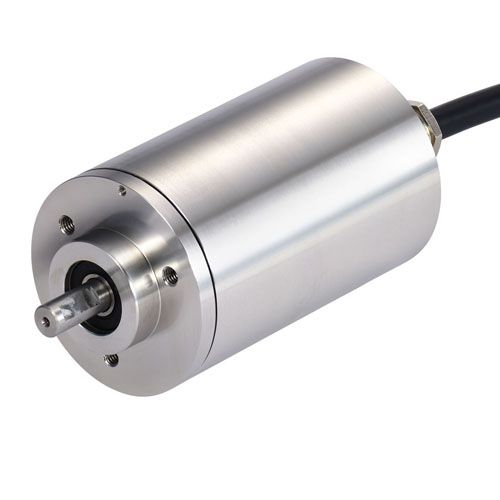

  ACURO AX71

  +

Ex rotary encoders (ATEX / IECEx) ACURO AX71

Product Overview

• ATEX certificate for gas and dust explosion-proof use
• Ingress protection up to IP67
• Diameter only 70 mm
• High degre of robustness
• Also available with rust-resistant stainless steel housing
• Resolution up to 29 bits (17 bits ST, 12 bits MT)
• Applications: Paint shops, Petrochemicals, Bagging systems, Mixing installations, Silo installations, Mills




Technical Data
Product Family	AX71
Ordering Information	RotaryEncoderAX71
Fuction / Application	Absolute
Technology	Optical
Approval	CE ATEX IECEx
